Dispatch Centre Configuration - Gmail APIs
Purpose
To setup the Gmail API service within the Gmail Admin portal
Access
Login to the above website.
Create the Project

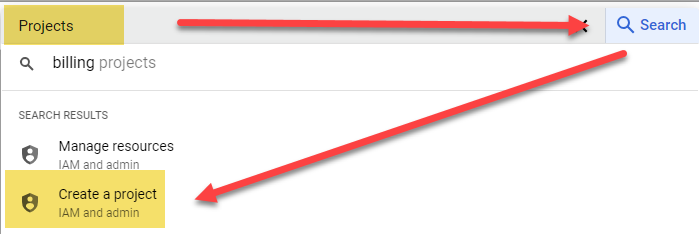

In the search bar enter Projects. Select the Create a Project option.

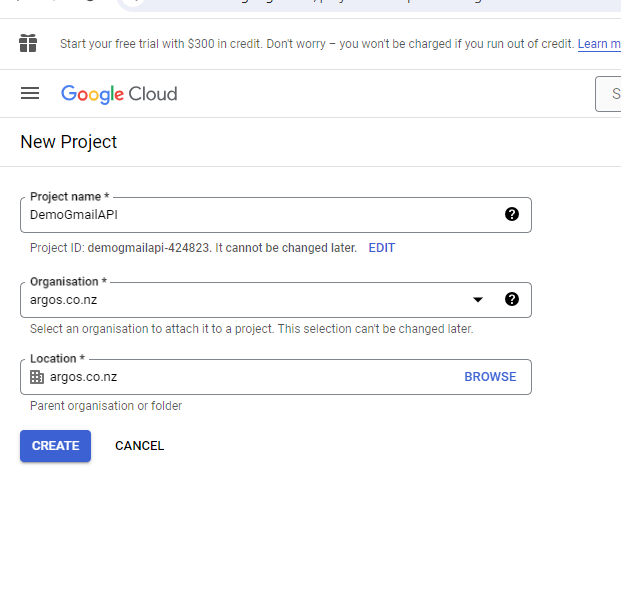

Complete the Project Name, Organisation and Location for the Project.
Press Create
A notification will display, click on select Project

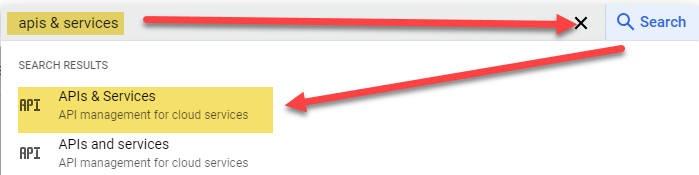

In the search bar enter APIS & Services. Select the APIS & Services option.
Enable the Gmail API App
In the menu on the left, select the Enabled APIs and Services option
Select + Enable APIs and Services

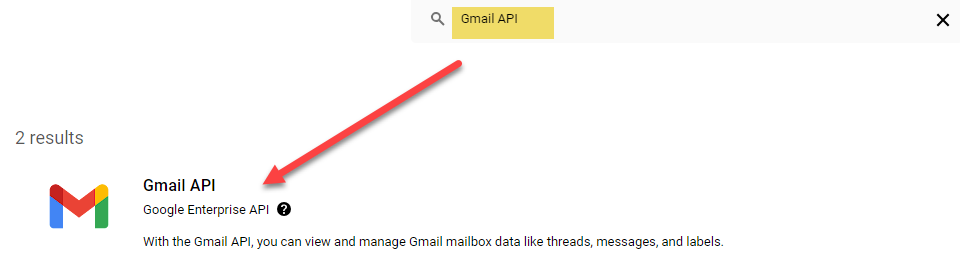

Search for Gmail API
Select Gmail API

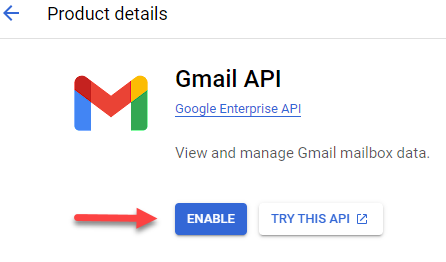

Enable the App

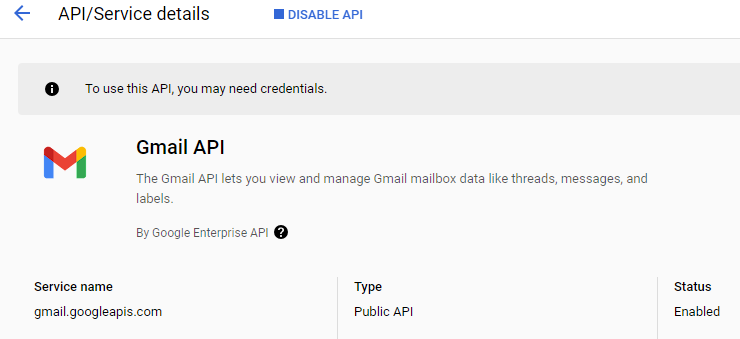

The following will display:
Complete the OAuth Consent Screen

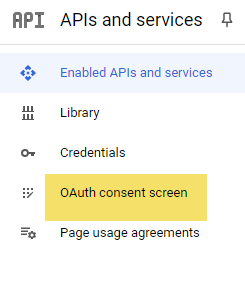

In the menu on the left, select the OAuth consent screen

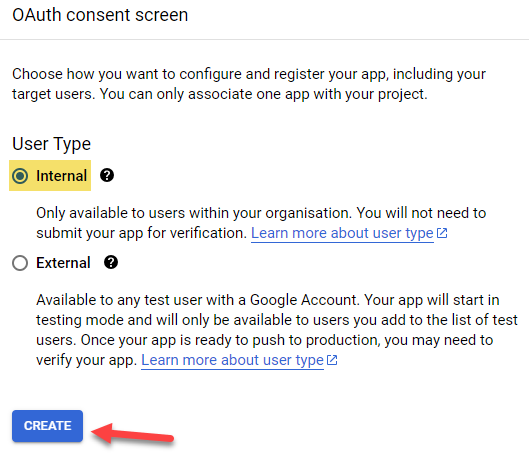

Check on Internal then Create:

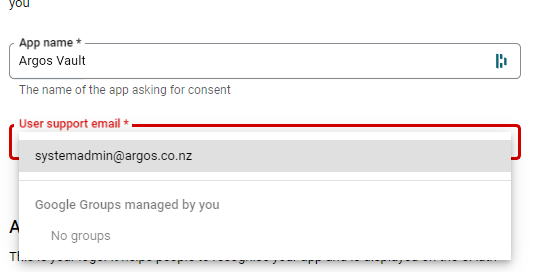

App Information
App Name – Argos Vault
User Support Email – Select the default email address from the Admin login

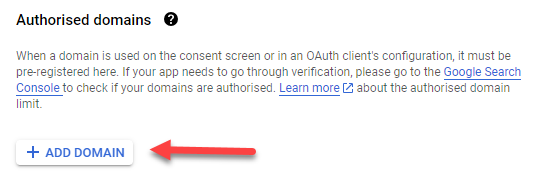

Authorised Domains
Click + Add Domain
Enter your domain name e.g. argos.co.nz
Developer Contact Information
Enter the email addresses for google notifications regarding the API setups
Complete the OAuth Scopes:

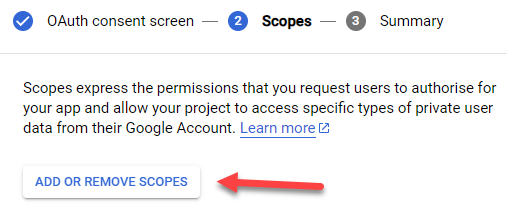

Select Add or Remove Scopes

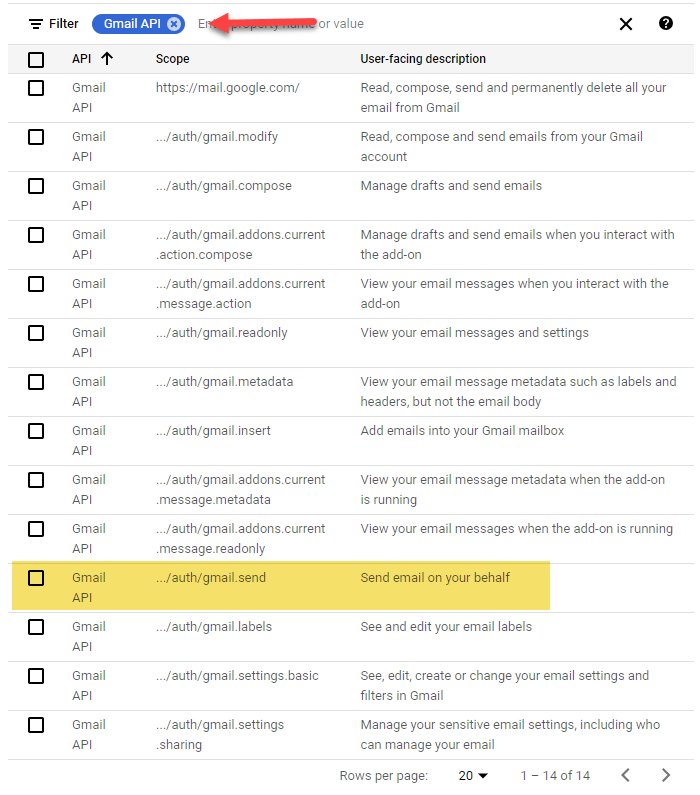

Search for Gmail API

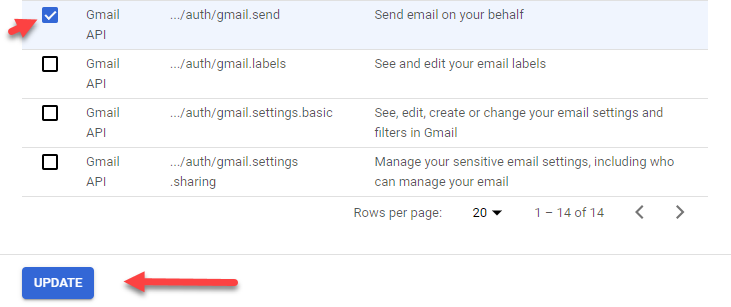

Select Send email on your behalf – Update

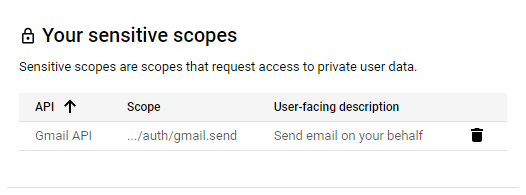

Your selection will display here
A Summary Page will display with the setup details.
Complete the Credentials
In the menu on the left, select the Credentials screen

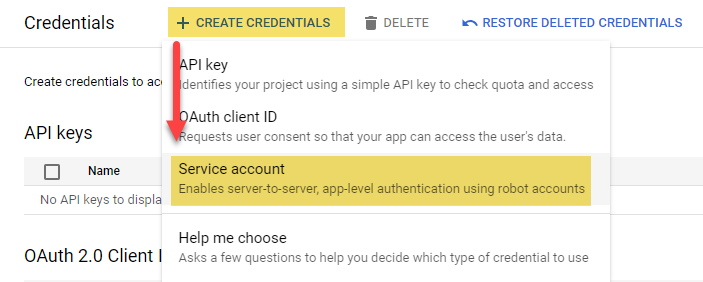

Select the + Create Credentials option then Service Account

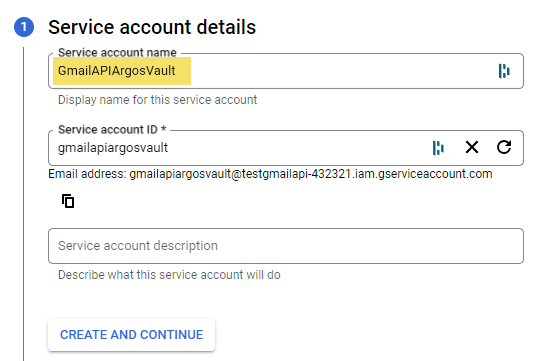

Service Account Details
Enter the Service Account Name as GmailAPIArgosVault
The Service Account ID will automatically populate
Click Done

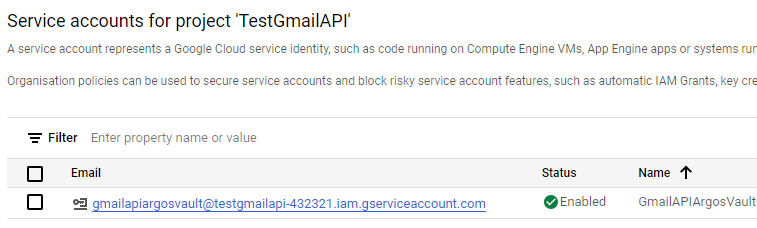

Your Service Account is now created:
Create a Private Key

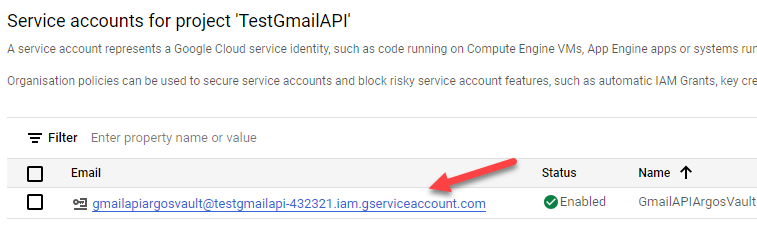

Select the email below to display the Service Account

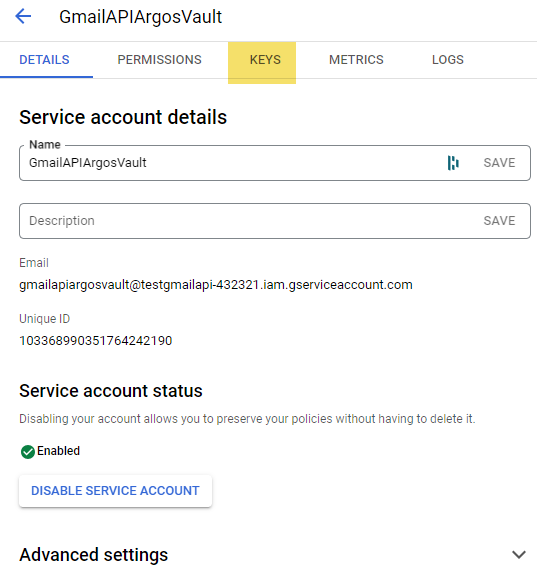

Go to Keys:

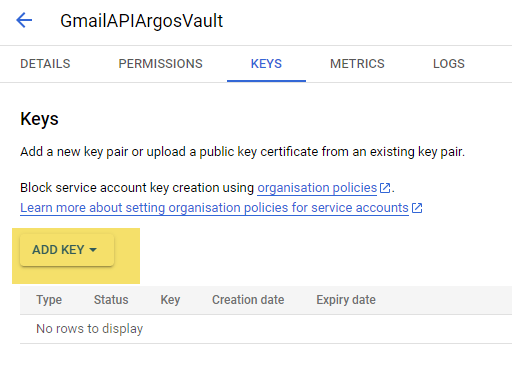

Add Key
Create New Key

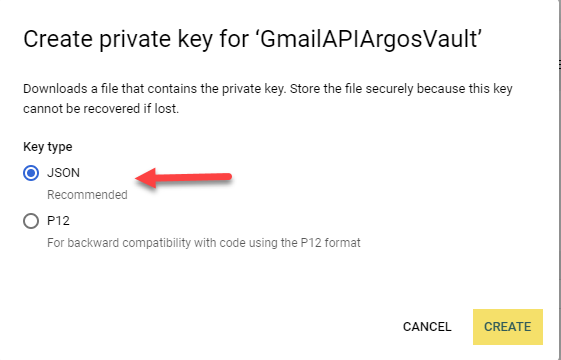

Key Type = JSON, Create

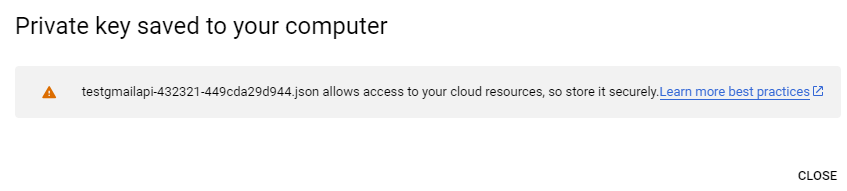

A JSON file will automatically download to you PC.
Close this dialog

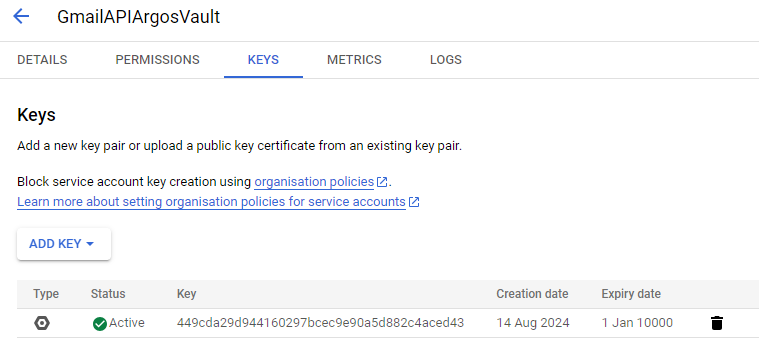

The Key will display as below:
This is your private/public key. Keep it safe.
Domain-Wide Delegation Setup

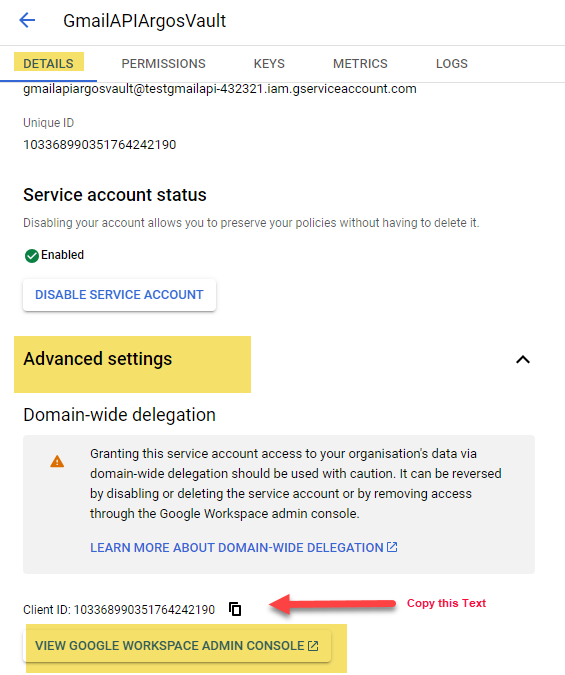

Go to Details – Advanced Settings, Copy the Client ID and select View Google Workspace Admin Console

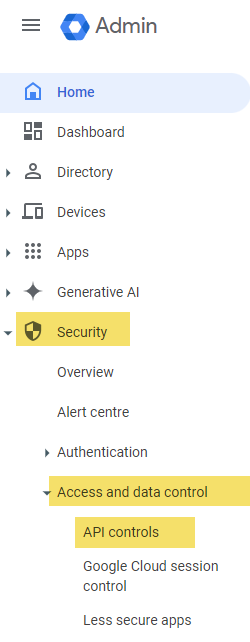

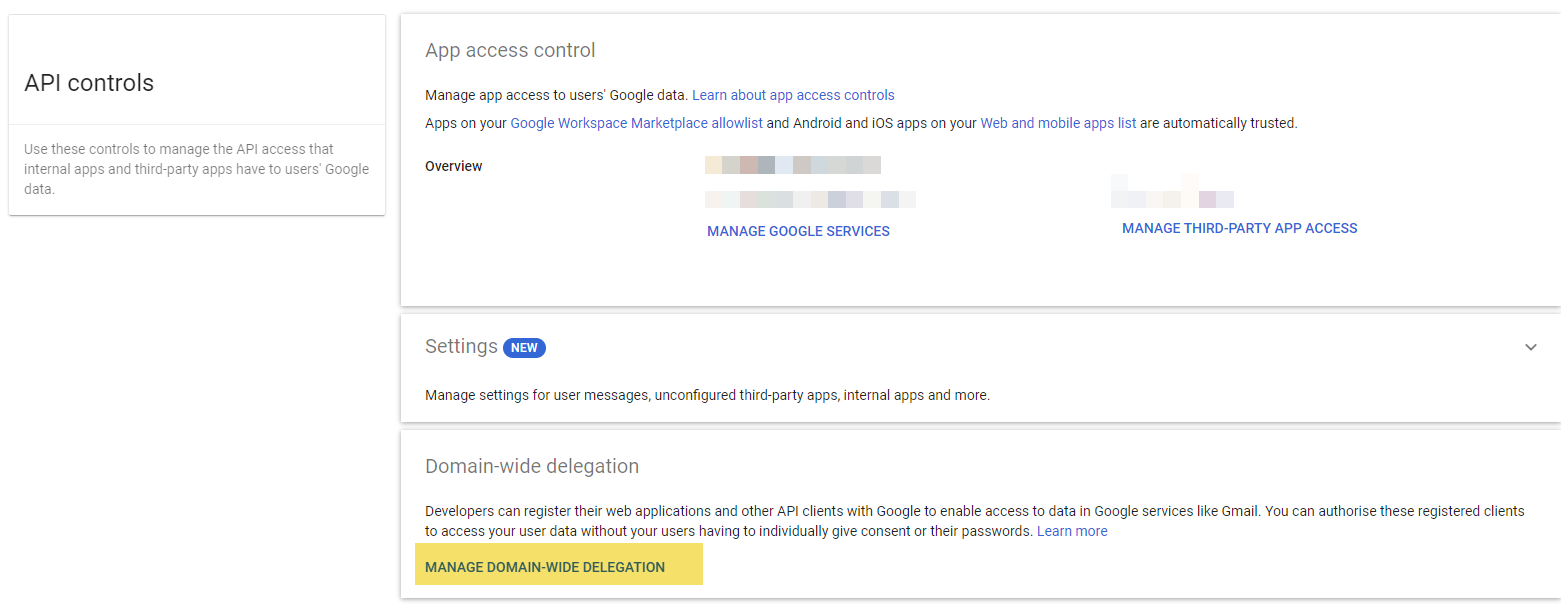

Login to your Admin Workspace, on the side menu go to Security – Access and Data Control – API Controls

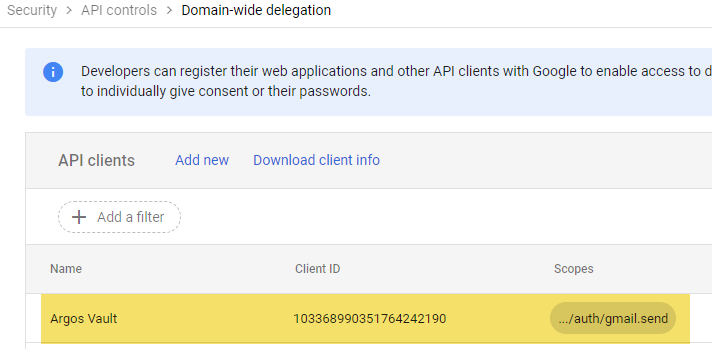

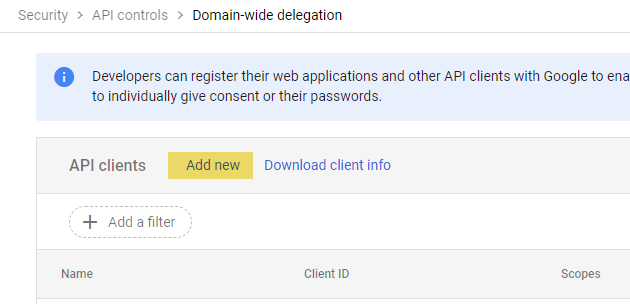

Select Manage Domain-Wide Delegation
Click Add New

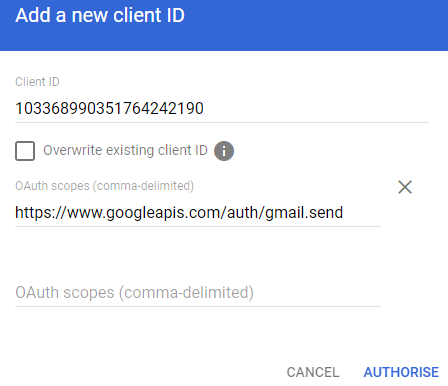

Paste in the Client ID copied from the Advanced Settings page and the OAuth Scope - Authorise
Set Permissions

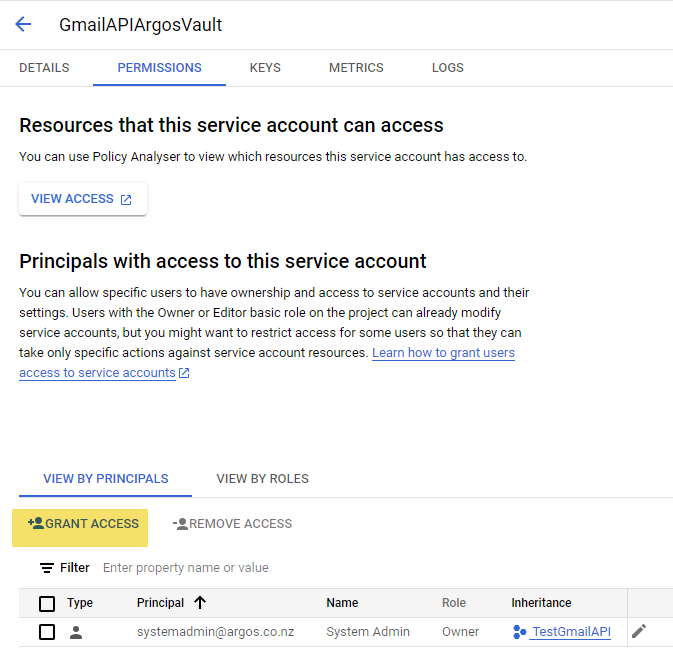

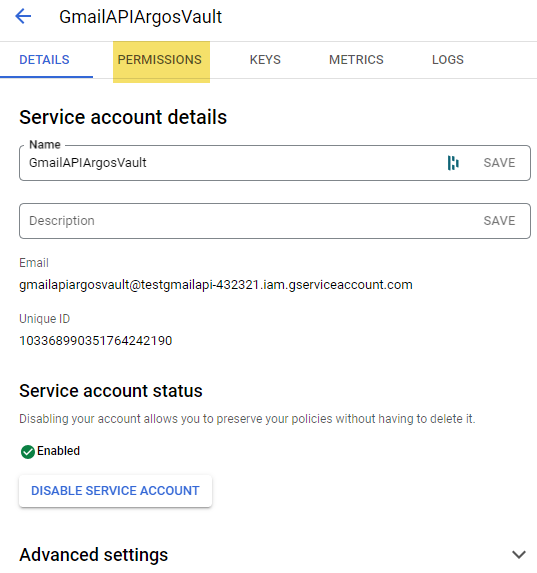

Go to Permissions

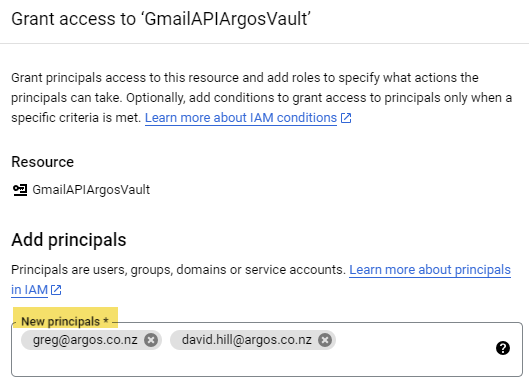

Grant Access
Add Principals
Emails can be sent out from a different email account, impersonating a sender, that exists under your organization in your Gsuite account.
To do that, you will need to assign it as a Principal User of your service account in your Gmail service.
You will set the emails listed here as the Error email and the Sent From/Reply To email in Vault.

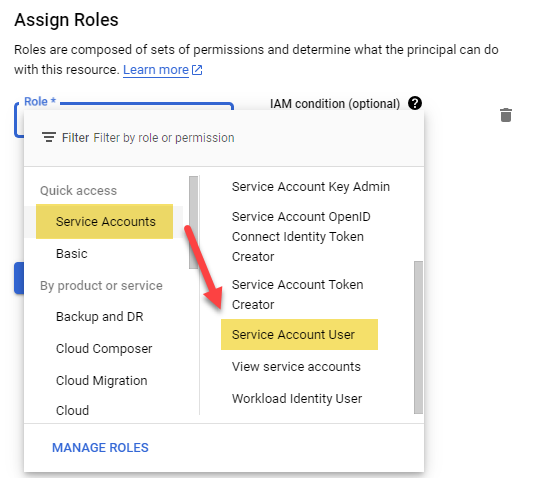

Assign Roles
Assign the Server Accounts – Service Account User role to these email addresses
Save the Permissions

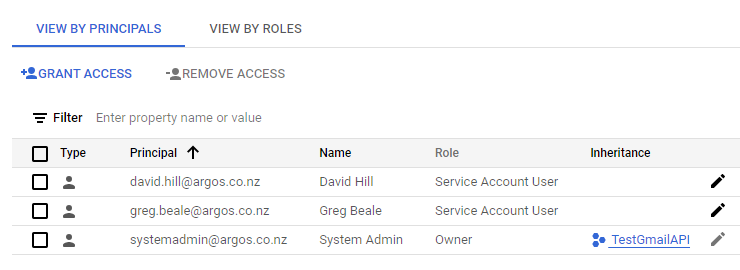

The added email addresses will display as below:

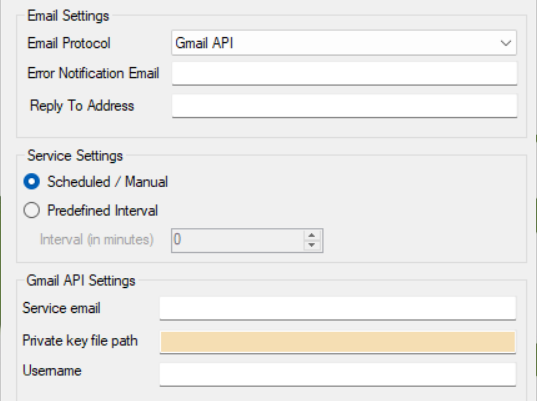

Gmail API Server Setup
Gmail API Settings
Field | Explanation |
Email Protocol | Gmail API |
Error Notification Email | Enter the email address that any dispatch centre failed recipient errors should be sent to A separate email address is to be used for this to make rejections easy to recognise |
Reply to Address | Enter the email address you want the recipient to reply to This address shows as the sender in the recipient's email This may be the same as the Username |
Service Email | Enter the Service Email from the Service Account Details setup in the Gmail API configuration |
Private Key File Path | [F2] to browse for the folder containing the Private Kay JSON file |
Username | Enter the email address set up as the Principal Email address in the Gmail API configuration |
Important Note:
The Email exception errors may be sent to the email account associated with the server username or to the Reply to Address. This will be dependent on the server setup.
Once the dispatch centre control details have been set up you must run the following tests so you know exactly how your errors are being reported.
- Email a communication to an address you have access to that is different from the ones entered above. Check the email is processed correctly and that you receive it.
- Attempt to email a communication to an address that does not exist. E.g. doesnotexist@argos.co.nz .
- Attempt to email a communication without entering an email address.
In the above cases you should receive either the email or an email notifying you of the error.
Service Settings
These settings will determine how often and/or when a check will be made for communications with a status of Ready to Send
Any communications with that status will be dispatched automatically
Field | Explanation |
Scheduled/Manual | Checking this option will allow you to run the dispatch centre manually from within the application or from a Windows Scheduled Task |
Predefined Interval | Check this option if you intend to run the dispatch centre continually as a service. |
Interval (in minutes) | This field is enabled if the Predefined Interval Service Setting has been checked This indicates the polling interval when dispatch centre is running as a service The interval entered here is always in minutes, we recommend a setting of 10 minutes |
Dispatch Centre Path | [F2] to browse for the folder containing the instance of Dispatch Centre required for this database For example c:\ArgosApps\DispatchCentre A single instance of Dispatch Centre is required for each different database you run |
