Bailment.Web Server Configuration

Bailment.Web Server Configuration

Purpose

This document outlines the steps required to install Bailment.Web on a Windows Server

Windows Server 2012 is used as an example

Windows Components

From the Server Manager Dashboard select “Add Roles and Features”. Select the server you wish to configure, and then click [Next]

On the Server Roles, the following components must be installed:
  1. Web Server (IIS)
    1. Web Server
      1. Application Development (ASP.NET 4.5)
    2. Management Tools
      1. IIS 6 Management Compatibility
Accept any prerequisite components required and click install. Restart if necessary.

IIS Setups

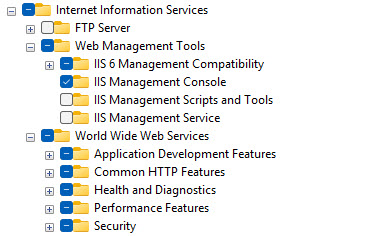

  1. Control Panel | Programs | Turn Windows Features on or off

Note: other components may be installed, but these are the ones required for Bailment.Web

Install Bailment Web

Refer to the Bailment Web Installer document

Configure the application pool in IIS

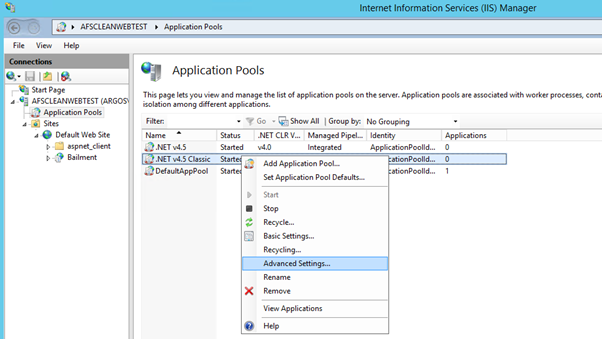

Open IIS and select the application pool you have installed Bailment.Web under

Right Click and select “Advanced Settings…”


Change Enable 32-bit Applications to True

Configure Bailment.Web

Add the ConnectionSettings.config, CssThemes.config and IdenfitySettings.config files and configure appropriately

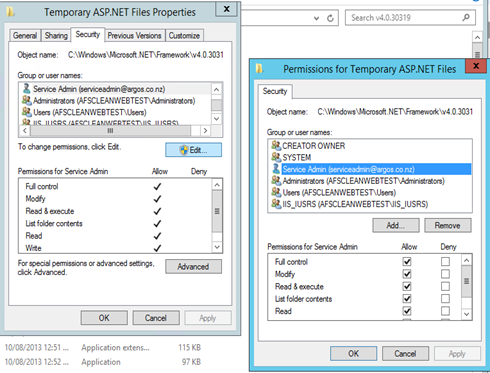

Temporary ASP.Net Files

Make sure the user specified in IdentitySettngs.config has write access to

C:\Windows\Microsoft.NET\Framework\v4.0.30319\Temporary ASP.NET Files
